Sea Pike.
These remind me of marine iguanas.
Saltwater Cats and an Old Maid.
Sunday, November 28, 2010
Saturday, November 27, 2010
New Clear Spring Diving
You know they spell Claratin with a y here, like "Claratyne."
It was pretty clear today. Best vis I've seen since I dove The Leap over a year ago, 45'.
My lens fogged for a bit right when I got in but cleared later. It was cold. Karin is swimming 1k in the waves tomorrow out to wedding cake island. They're starting from the sand beach at upper left.
View Larger Map
The "calryty" make taking pics so much better. Natural light really helps the DC1000 a lot, but I found it was overexposing often, which is opposite the problem I normally have. In high light, it might be better to try the "multi" metering setting. I have it set to point.
It is the season for loving down here. And under there.
Cheyas mates. I'm off for a night snorkel in Clovelly Pool.
Monday, November 22, 2010
Wet Queensland
I was in Gladstone, QLD for work and stayed on for the weekend. I headed out to Curtis Island on the ferry. I can't remember a more continuous rain. This little froggy jumped on the grill while I was heating my soup. I didn't see it happen.
The camp kagas munching hay.
Praying Mantis.
This is the mud flat I ended up crossing to get back to camp.
I sorta started thinking about crocs when I was out on the mud flat.
The mangrove niche is filled by eucalypts here.
A sea turtle shell, about 2km inland on the flats. I'm always shocked how tired I look when I do these.
The ocean was turbid but warm. I didn't feel like it.
Pretty peas and floating stones.
More dead frogs. I think the green tree frogs aren't very smart.
.. and yeah the roof is worse.
The ocean was turbid but warm. I didn't feel like it.
Pretty peas and floating stones.
More dead frogs. I think the green tree frogs aren't very smart.
.. and yeah the roof is worse.
View Larger Map
Saturday, November 13, 2010
SeaLife DC1000 Long Term Review
Ok, so I've had my SeaLife underwater camera for a while now.
My first one was a DC800, which was a good camera, but somehow the firmware locked up on generator power in Fiji. It was under warranty so they sent me a DC1000 + new case + wide angle lense for free. Pretty awesome.
However recently the case developed a sticky shutter button. I've just pulled it apart and managed to fix it, so I wanted to share because many out there have resorted to sending in for a new case, but I am out of warranty. Anyway the fix went well.

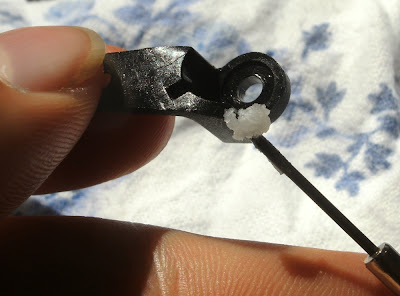

Dis-assembly is straightforward, except for getting the black plastic arm off the shaft inside the housing. There is a groove in the shaft just below the arm which holds a c-clip. Once the c-clip is removed (use two small screwdrivers to nudge it off) you would expect the arm to slide right off, but it catches on the groove. Resist the temptation to wang on the tip of the arm - use a small screwdriver and pry from above, as close to the shaft as you can. Mine came off crooked with a popping sound, which was really distressing but it wasn't hurt.
Dis-assembly is straightforward, except for getting the black plastic arm off the shaft inside the housing. There is a groove in the shaft just below the arm which holds a c-clip. Once the c-clip is removed (use two small screwdrivers to nudge it off) you would expect the arm to slide right off, but it catches on the groove. Resist the temptation to wang on the tip of the arm - use a small screwdriver and pry from above, as close to the shaft as you can. Mine came off crooked with a popping sound, which was really distressing but it wasn't hurt.
Here's the shutter button assy, and a close-up of the scoring I found on the button shaft. I also noticed that some sand made it into the assembly spring hole and stayed there.

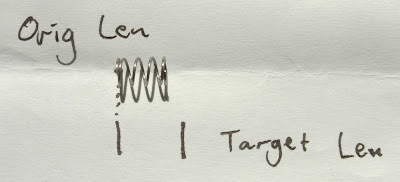

I resized the spring to provide more restorative force to the button.

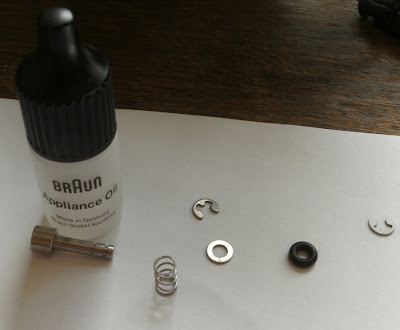

Don't use appliance oil - it is too light and it isn't effective on rubber/metal interface actually. Note that the c-clip is placed on the assembly prematurely in this pic - it actually goes on the inside of the case.
Use lib balm instead. And block up the pesky flush hole which let the sand in.

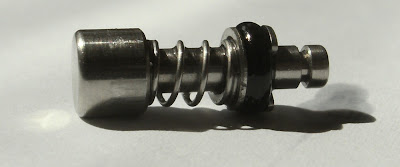

Insert the button spring assy gently, noting that the seal from the o-ring is two-sided: one on the housing and one on the shaft. Lube the hole before insertion.

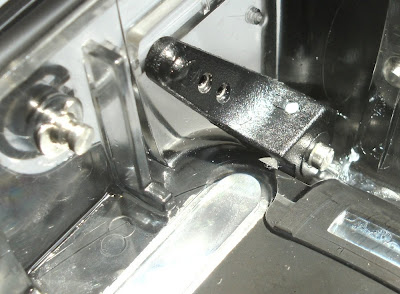

Once the shaft is c-clipped in place, put the arm on within the housing.

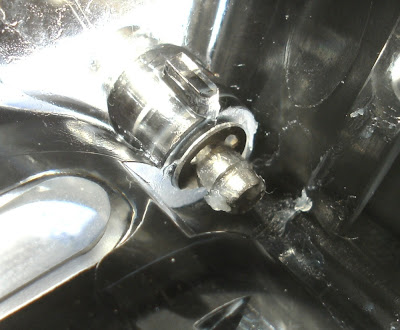

and add the second c-clip beneath it. Little flat screwdrivers are good for pushing them back on.
I used a piece of condom to seal above the shutter button to avoid sand ingression again. Put it under the cover plate, against the clear plastic.
Note the shutter button has big clearance for flushing. Sand comes in if you do sandy stuff. Avoid sand.
Labels:
DC1000,
DIY,
long term test,
repair,
shutter,
user review
